HC05 6pin Bluetooth Module

R150,00

In stock

Listed as brand new
Components, specs and condition listed
5 day functionality warranty
Local dispatch from South Africa
Brand: Bluetooth Modules • Sold by GAMERIFT

In stock

Specifications

Weight	0,003 kg
Dimensions	0,24 × 3,88 × 1,57 cm
Brands	Bluetooth Modules
Condition	New
Category Type	IoT Tech
Warranty	5 day functionality warranty

Description

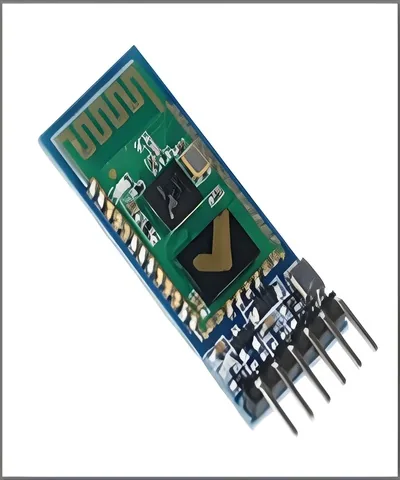

HC05 6pin Bluetooth Module (Master/Slave) with Button for IoT is a brand new wireless serial communication module designed for easy integration with microcontrollers, development boards, and Bluetooth-enabled devices. Supporting both master and slave modes, it uses Bluetooth v2.0+EDR for dependable data transfer and includes an onboard button for switching between command and data modes during setup. With a 6-pin layout, default baud rate of 9600 bps, and operating support from 3.3V to 5V, it suits robotics, remote control, home automation, and embedded projects. Compact and practical, this HC05 module is a useful addition to IoT builds available from GAMERIFT.

ABOUT

HC05 6pin Bluetooth Module – Wireless Serial for Arduino

The HC05 6pin Bluetooth Module (Master/Slave) with Button is a brand new IoT component built for wireless serial communication in embedded and electronics projects. It supports Bluetooth v2.0+EDR and is designed for transparent serial data transfer between microcontrollers and compatible Bluetooth devices such as smartphones, tablets, and PCs using Serial Port Profile connectivity. With support for both master and slave modes, this module gives you added flexibility when building custom wireless links for robotics, remote control systems, home automation, data logging, and sensor-based applications.

This module features a compact 6-pin design for straightforward integration into a wide range of projects. The onboard button allows switching between command and data modes, making AT command configuration more convenient during setup. It operates in the 2.4GHz ISM band using GFSK modulation and is based on the CSR Bluecore 04-External single-chip Bluetooth system. With approximately 4dBm Class 2 emission power, receiver sensitivity around -84dBm at 0.1% BER, and a typical communication range of up to 10 meters, it offers reliable short-range wireless performance for many common IoT and embedded uses.

HC05 6pin Bluetooth Module – Brand New for IoT Projects

This is a brand new HC05 6pin Bluetooth Module for IoT. It is suitable for new project builds, replacements, and prototype development where compact wireless serial communication is needed.

The module supports a voltage range of 3.3V to 5V and uses a default baud rate of 9600 bps with 8 data bits, 1 stop bit, and no parity. Its 6-pin layout includes State, RXD, TXD, GND, VCC, and EN pins for practical interfacing with compatible hardware.

Buy HC05 Bluetooth Module from GAMERIFT South Africa

GAMERIFT offers clear product identification so you can shop with confidence for the parts you need. This HC05 6pin Bluetooth Module is presented with straightforward condition information and practical details to help you choose the right component for your IoT, embedded, and electronics projects. Whether you are building a new prototype or expanding an existing setup, this module is a dependable option for short-range Bluetooth serial communication.
